• ​Rim clamping range from outside 10" - 26"

• Rim clamping range from inside 12" - 24"

• Max. tire diameter 43"

• ​Max. tire width 16"

• ​​​Robust fixed vertical tower with innovative parallelogram operating arm (PAR-MOVE Concept);

• Equipped with HP119 dual assist arm (standard) and storage box.

• Double rotation speed by pedal (motoinverter),

• Power Supply 110V​

• ​Center post version available

• Suitable for Wheel Lifter and tubeless tire bead seating system optional*

• ​Net weight 888 lbs​

• ​2 years warranty on parts, 5 years on transmission, 1 year on labor


• Rim clamping range from outside 10" - 24"

• Rim clamping range from inside 12" - 26"

• Max. tyre diameter 1200 mm (47")

• Max. tyre width 390 mm (15")

• Bead breaker cylinder force at 10 Bar 30800 N

• Operating pressure 10 bar (145 Psi)

• Power supply 110V/ 2 speed

• Rotating speed 7 rpm -14 rpm

• Optional wheel lift available
• ​PRESS ARM : additional arm to ease mounting operations of low profiled and UHP tires optionnal left*​
• Net weight 235 Kg

• 2 years warranty on parts, 5 years on transmission, 1 year on labor


NEW MODEL

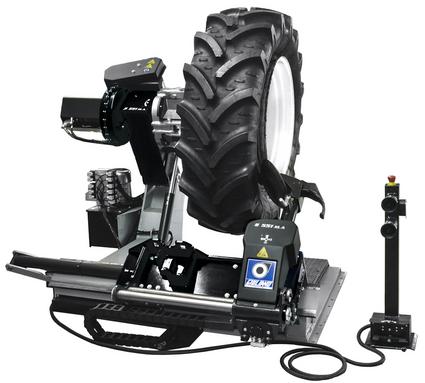

​S551XLA

• Rim clamping range from outside 10" - 22"

• Rim clamping range from inside 12" - 24"

• Max. tyre diameter 1100 mm (43")

• Max. tyre width 330 mm (14")

• Bead breaker cylinder force at 10 Bar 30800 N

• Operating pressure 10 bar (145 Psi)

• Power supply 110Volt, 2 speed​

• Rotating speed 7 /16rpm​

• Optional wheel lift available

• PRESS ARM : additional arm to ease mounting operations of low profiled and UHP tires Optionnal*

• Net weight 190 Kg/256Kg

• 1 years warranty on parts, 5 years on transmission, 1 year on labor


• Rim clamping range from outside 10" - 22" ​

• Rim clamping range from inside 12" - 24"

• Max. tyre diameter 1100 mm (33")

• Max. tyre width 390 mm (15")

• Bead breaker cylinder force at 10 Bar 30800 N

• Operating pressure 145 Psi

• Power supply  110V, single speed​

• Rotating speed 7 rpm

• Optional wheel lift available
• ​PRESS ARM : additional arm to ease mounting operations of low profiled and UHP tires.

• Black trim

• Net weight 225 Kg​

• ​2 years warranty on parts, 5 years on transmission, 1 year on labor


•  Rim clamping range 12'' - 30''
• ​Max. tire diameter  47''
• Max. tire width 16'' (For reverse mounted wheels, variable according to rim features)​​
• ​​​Robust fixed vertical tower with innovative parallelogram operating arm (PAR-MOVE Concept)

• ​Equipped with Lever - NO Lever tyre mounting/demounting system, Giuliano Patent

• Patented SMART LOCK ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut

• Double arm/disk air operated bead breaker system;​

• Double rotation speed by pedal (motoinverter),

• Power supply 110V

• Equipped with BP1 Plus bead pressing arm (standard), complete with self-storage function, Giuliano patent

• Equipped with  Storage Box

• Wheel Lift included.
• ​​Tubeless inflation external kit optionnal*

• 2 years warranty on parts, 5 years on transmission, 1 year on labor


​MAXI PRO CP PA*

MAXI PRO PA*​

​S228 PRO

​​S116

​S116 PA ECO

​S116 BIKE

*Optionnal

​S557

• Rim clamping range without extensions 14" - 46"

• Rim clamping range with extensions (optional) 14" - 58"

• Max. tyre diameter 2300 mm (90,5")

• Max. tyre width 1100 mm (43")

• Bead breaker force 26350 N

• Operating pressure 130 bar (1885 psi)

• Power supply 220V (50 Hz) - 3ph / 2 speed

• Hydraulic pump motor power 1,1 kW

• Clamping chuck motor power 1,3 / 1,8 kW

• Net weight 850 kg

• Max. tyre assembly weight 1500 kg

• Max overall dimensions 2000÷2450x1800÷2250x880÷1840 mm


S216​

​S216 PA ECO*​​

• ​Hydraulic movement of clamping chuck holding arm (up-down)

• Hydraulic travel movement of operating arm carriage (left-right)

• Operating arm automatic tilting and travelling on carriage;

• Double tool (disk + finger) automatic rotation

• Wheel clamping by fully hydraulic operated jaws

• Operating arm and clamping chuck arm facing each other

• All motions controlled by console and pedal box

• Emergency safety button on control console, for stopping all functions

• Rim center hole clamping range ø 80 - 1200 mm
• Clamping chuck minimum height from ground 315 mm (center)

• Suitable for remote control installation (optional)​

• ​Rim clamping range without extensions 14" - 46"

• Rim clamping range with extensions (optional) 14" - 58"
• Max. tyre diameter 2400 mm (94,5")

• Max. tyre width 1300 mm (51")

• Power supply 220V - 3ph / 2 speed

• Other voltages and frequencies available upon request

• Hydraulic pump motor power 1,5 kW

• Gearbox motor power 1,8 / 2,5 kW

• Operating pressure 140 bar (2031 psi) ±10%

• Bead breaker force 36000 N

• Net weight 1025 kg

• Max. tyre assembly weight 1800 kg

• Max overall dimensions 2210÷2850x1840÷2050x970÷1900 mm


​*Optionnal

• ​Rim clamping range from outside 10" - 22"

• Rim clamping range from inside 12" - 24"

• Max. tyre diameter 1100 mm (43")

• Max. tyre width 330 mm (13")

• Bead breaker cylinder force at 10 Bar 30800 N

• Operating pressure 10 bar (145 Psi)

• Power supply 110V, single speed​

• Rotating speed 7 rpm​

• Optional wheel lift available
• PRESS ARM : additional arm to ease mounting operations of low profiled and UHP tires Optionnal*

• Black trim

• Net weight 190 Kg

• 2 years warranty on parts, 5 years on transmission, 1 year on labor


• ​Rim clamping range from outside 10" - 24"

• Rim clamping range from inside 12" - 26"

• Max. tyre diameter 44"

• Max. tyre width 16"

• Tilting tower, sliding horizontal arm with ø 41 mm operating arm

• Equipped with Press Arm 3 and HP4 dual assist arm

• PO System, Giuliano patent, for granting no BB shovel stuck into the rim

• Bead breaker cylinder force at 10 Bar 30800 N

•  Optionnal Lever - No Lever tyre mounting/demounting system (Giuliano Patent)

• Operating pressure 10 bar 145 Psi

• Power supply 110V/ 2 speed

• Rotating speed 7-14 rpm

• Net weight 880 Lbs​​​

• ​2 years warranty on parts, 5 years on transmission, 1 year on labor

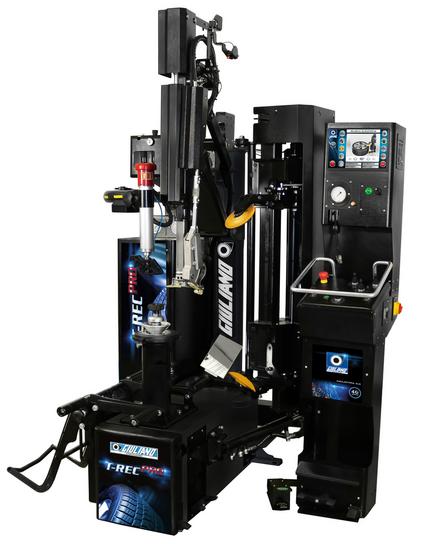

​T-REC PRO PRO

NEW MODEL

• ​​​​Hydraulic movement of clamping chuck holding arm (up-down)

• Hydraulic travel movement of operating arm carriage (left-right)

• Operating arm manual tilting and travelling on carriage

• Double tool (disk + finger) manual rotation

• Wheel clamping by fully hydraulic operated jaws

• Operating arm and clamping chuck arm facing each other

• All motions controlled by console and pedal box

• Emergency safety button on control consolle, for stopping all functions

• Rim center hole clamping range ø 80 - 700 mm

• Clamping chuck minimum height from ground 330 mm (center)

• ​​Rim clamping range 13" - 27"

• Max. tyre diameter 1600 mm (63")
• Max. tyre width 780 mm (30")

• Bead breaker force 18300 N

• Operating pressure 130 bar (1885 psi)

• Power supply 220V - 1ph / 2 speed

• Hydraulic pump motor power 1,1 kW

• Clamping chuck motor power 1,3 / 1,8 kW

• Net weight 560 kg

• Max. tyre assembly weight 1500 kg

• Max overall dimensions 1430÷1750x1550÷1740x1270 mm​​

• ​​​Double arm/disk bead breaker system, powered by motoinverter;

• Bead breaker disks are slightly but purposely misaligned with the rim center for a better and faster penetration and immediate bead loosening, Center Driven Concept (Giuliano patent);

• Equipped with TriTool system, syncronized tool movements for both mounting and demounting (patent pending);
• Double rotation speed by pedal and motoinverter;

• Patented SMART LOCK ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut;

• All movements powered by motoinverter;

• XTool no contact leverless tyre demount device (Giuliano patent);

• Wheel positioning through motorized clamping chuck and laser pointers (patent pending);

• Tire inflation by pedal (standard);

• Operated by pedal and control console with joysticks;

• Equipped with BP1 Plus bead pressing arm (standard) complete with self-storage function (Giuliano patent);

• Equipped with Lifter (standard);

• Suitable for Tubeless tyre bead seating system (optional).

• ​Power supply 220V

• ​Rotating speed 7-16 rpm

• ​Operating pressure 116-145 Psi

• Net weight 640 Kg

• ​2 years warranty on parts, 5 years on transmission, 1 year on labor ​

​S119 PRO

​S119 PRO CP

​​S121

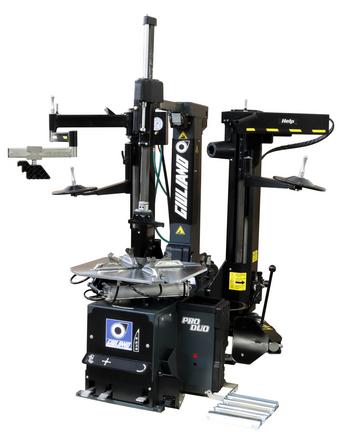

S234 PRO DUO

​MAXI PRO CP

​*Optionnal

​​​​MAXI PROi

1-450-649-8975

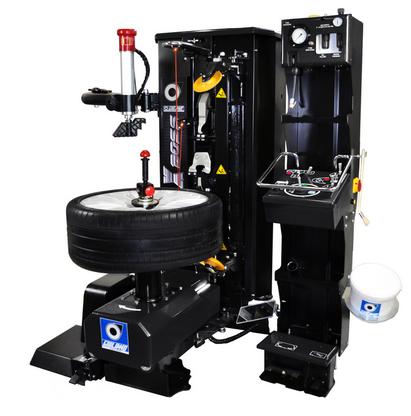

​XBOSS

S226

​S226 PRO

R.DUBOIS DISTRIBUTION​

​*Optionnal​

*​Optionnal

​S560

486 Rue Auger, Saint-Amable, Quebec J0L 1N0, Canada

• ​Automatic procedure for bead loosening and tyre demounting, selectable according to tyre type and wheel type.

• Chance to interrupt and modify automatic cycle, even during it, without RESET.

• “T-REC” function, to memorize new modified procedures and recall them on Touch Screen interface.

• Exclusive GIULIANO self-learning function "iREC": the tyre changer perfects the preset work cycles according to the experience of the operator, maximizing the speed of automation with the unique expertise of the professional.

• Center Clamp Chuck rotation by motoinverter or hydraulic.
• Laser pointer for positioning leverless tool.

• “Tyre Set” function to replicate the same procedure on the whole set of tyres.

• Start / Stop pedal for automatic cycle.

• A very practical Wheel Positioner reduces effort and increases productivity (standard).

• Interactive Touch Screen 10” monitor for working operations selection.

• Ergonomic and user-friendly control console; double working mode: automatic or manual.

• 5 YEAR WARRANTY on gearbox and PAR-MOVE (Giuliano Patent).​

• Designed, built and engineered in Italy.​​


• ​Rim clamping range from outside 10" - 24"

• Rim clamping range from inside 12" - 26"

• Max. tyre diameter 43"

• Max. tyre width 16"

• Tilting tower, sliding horizontal arm with ø 41 mm operating arm

• Equipped with HP2 dual assist arm (standard) and storage box

• PO System, Giuliano patent, for granting no BB shovel stuck into the rim

• Bead breaker cylinder force at 10 Bar 30800 N

•  Optionnal Lever - No Lever tyre mounting/demounting system (Giuliano Patent)

• Operating pressure 10 bar 145 Psi

• Power supply 110V/ 2 speed

• Rotating speed 7-14 rpm

• Net weight 793 Lbs

• ​2 years warranty on parts, 5 years on transmission, 1 year on labor
