3 automatic data entry
Touch screen monitor
Quick clamping wing nut
SPOTTER Laser System, pinpoints the exact position for stick-on weights inside the rim
ELECTROMAGNETIC BRAKE holds the wheel in position
LED to light the work space inside the rim
Cone truck kit included
Max load on shaft 165 lbs
Max. tire diameter 42''
Rim diameter setting range 10'' - 30''
Rim width setting range 1.5” - 20”
Power requirements 110 Volt
Balancing speed 100 rpm
Measuring cycle for 15 kg (33 lbs) wheel 4,7 s
Unbalance resolution < 0.01 oz (<1 g)
Shipping Weight 375 lbs
Warranty 3 years on parts, 5 years on motor, 1 year on labor

R.DUBOIS DISTRIBUTION

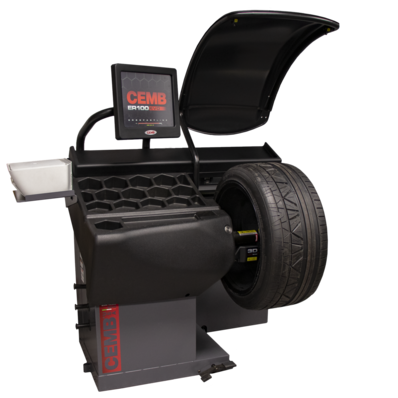

ER100 EVO

SPECS SHEETS

1-450-649-8975

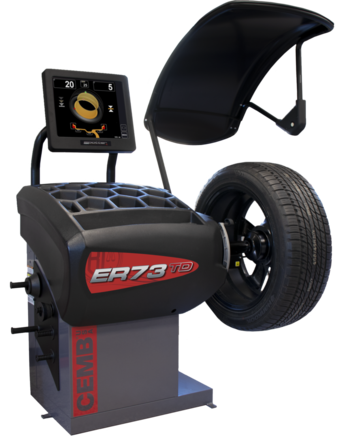

ER73TD

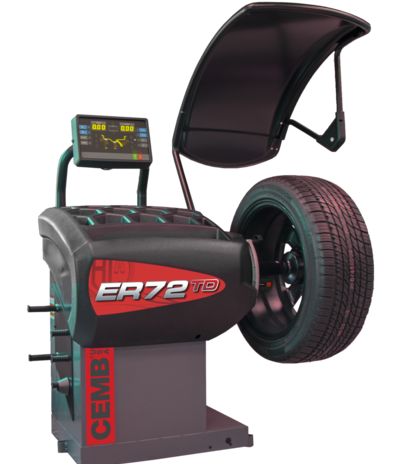

ER72TD

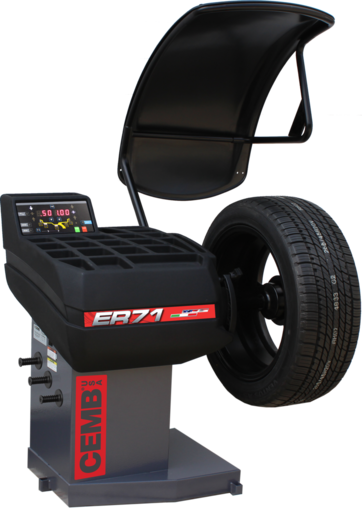

ER71

SPECS SHEETS

EZ9

ER75TD

SPECS SHEETS

3 automatic data entry
Touch screen monitor
Pneumatic wheel locking (power clamp 116 psi to 145 psi)
Automatic measuring of radial run out by SONAR (Diagnostic)
SPOTTER Laser System, pinpoints the exact position for stick-on weights inside the rim
ELECTROMAGNETIC BRAKE holds the wheel in position
LED to light the work space inside the rim
Cone truck kit included
Max load on shaft 165 lbs
Max. tire diameter 42''
Rim diameter setting range 10'' - 30''
Rim width setting range 1.5” - 20”
Power requirements 110 Volt
Balancing speed 100 rpm
Measuring cycle for 15 kg (33 lbs) wheel 4,7 s
Unbalance resolution < 0.01 oz (<1 g)
Shipping Weight 375 lbs
Warranty 3 years on parts, 5 years on motor, 1 year on labor

3 automatic data entry
Multi-Function LED Display accurate with simple to use interface
Quick clamping wing nut
SPOTTER Laser System, pinpoints the exact position for stick-on weights inside the rim
ELECTROMAGNETIC BRAKE holds the wheel in position
LED to light the work space inside the rim
Cone truck kit included
Max load on shaft 165 lbs
Max. tire diameter 42''
Rim diameter setting range 10'' - 30''
Rim width setting range 1.5” - 20”
Power requirements 110 Volt
Balancing speed 100 rpm
Measuring cycle for 15 kg (33 lbs) wheel 4,7 s
Unbalance resolution < 0.01 oz (<1 g)
Shipping Weight 375 lbs
Warranty 3 years on parts, 5 years on motor, 1 year on labor

3 automatic data entry
Multi-Function LED Display accurate with simple to use interface
Quick clamping wing nut
Laser Line BDC (Bottom Dead Center) simple and accurate
tape-on weight placement
ELECTROMAGNETIC BRAKE holds the wheel in position
LED to light the work space inside the rim
Cone truck kit included
Max load on shaft 165 lbs
Max. tire diameter 40''
Rim diameter setting range 10'' - 30''
Rim width setting range 1.5” - 20”
Power requirements 110 Volt
Balancing speed 100 rpm
Measuring cycle for 15 kg (33 lbs) wheel 4,7 s
Unbalance resolution < 0.01 oz (<1 g)
Shipping Weight 354 lbs
Warranty 3 years on parts, 5 years on motor, 1 year on labor

 3 automatic dimensions without the use of the measuring arm (3D laser scan)
Tread depth measuring by laser
HD touch screen video display
Pneumatic clamping of the wheel / Power clamp
Automatic measurement of the radial eccentricity of the wheel with laser
ELECTROMAGNETIC BRAKE holds the wheel in position
LED indicator to illuminate the work area
Laser line indicator to facilitate the application of clipped pellets and laser dot for bonded pellets
Truck cone included
Universal pin platte included
Maximum weight 165 lbs Max.
Diameter wheel / tire 40 ''
Rim diameter 10 "-30"
Rim width max 20"
220 Volt power supply
Balancing speed <100 rpm
Balance accuracy ± 0.5g
Operating pressure 116-145 PSI
Net weight 495 lbs
Warranty 2 years parts, 5 years motor, 1 year labor
WBL81 wheel lift, for wheel easy positioning and centering on the shaft, without any effort for the operator, optionnal*
2 years warranty on all parts, 3 years on motor, 1 year on labor
